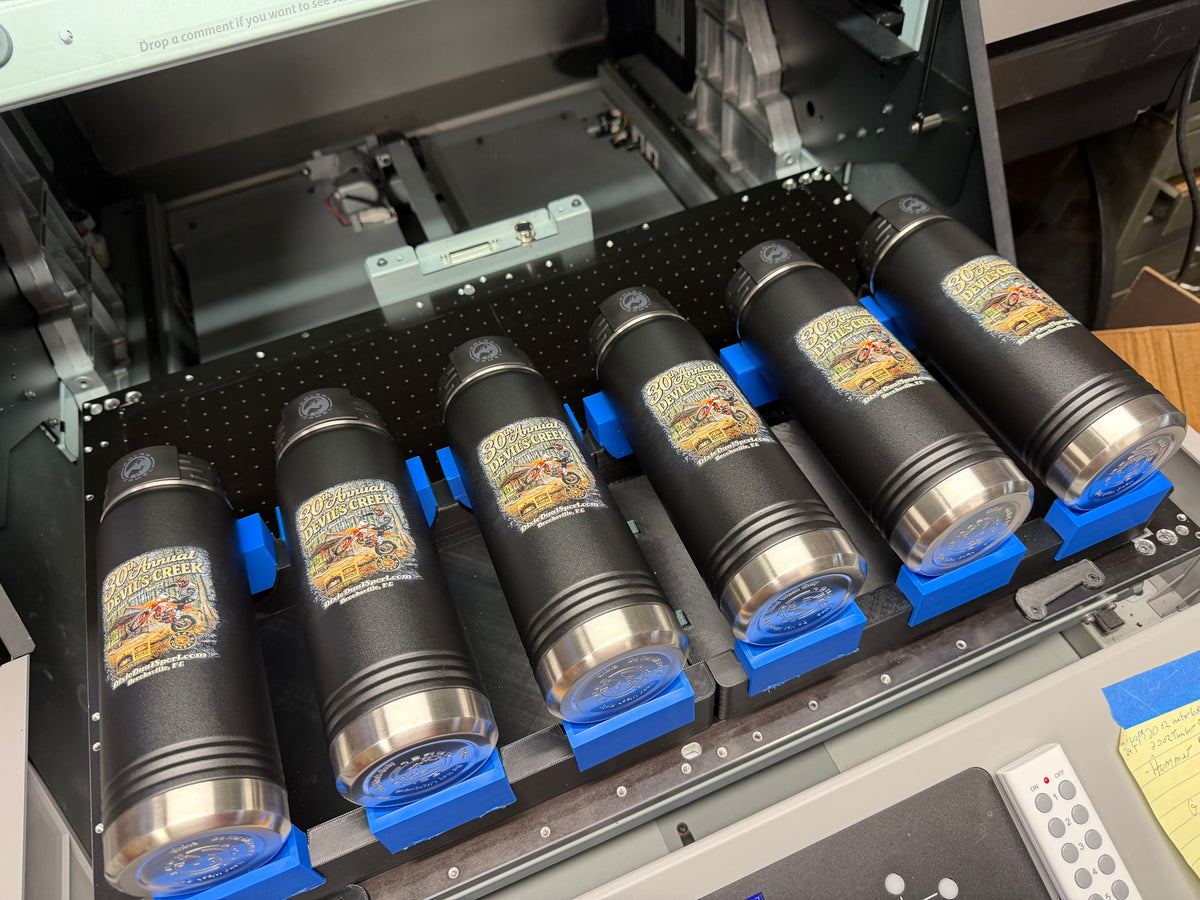

Mimaki 3042/6042/7151(same as 6042 model) Tumbler and Water Bottle Jig

Take the frustration out of printing drinkware with this precision-designed jig system built for Mimaki 6042 UV printers.

This jig system is designed to give you flexibility depending on the drinkware you print most often.

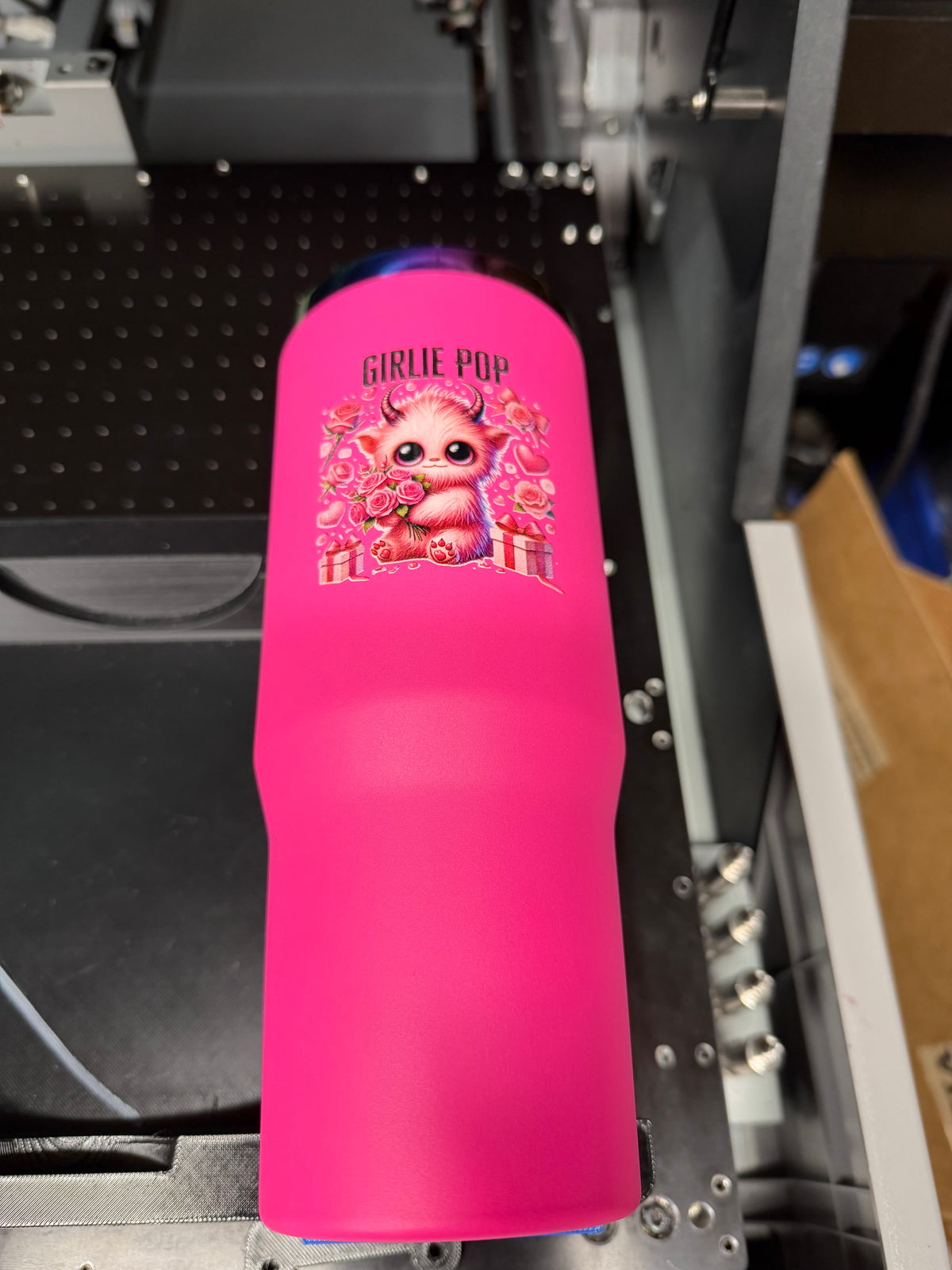

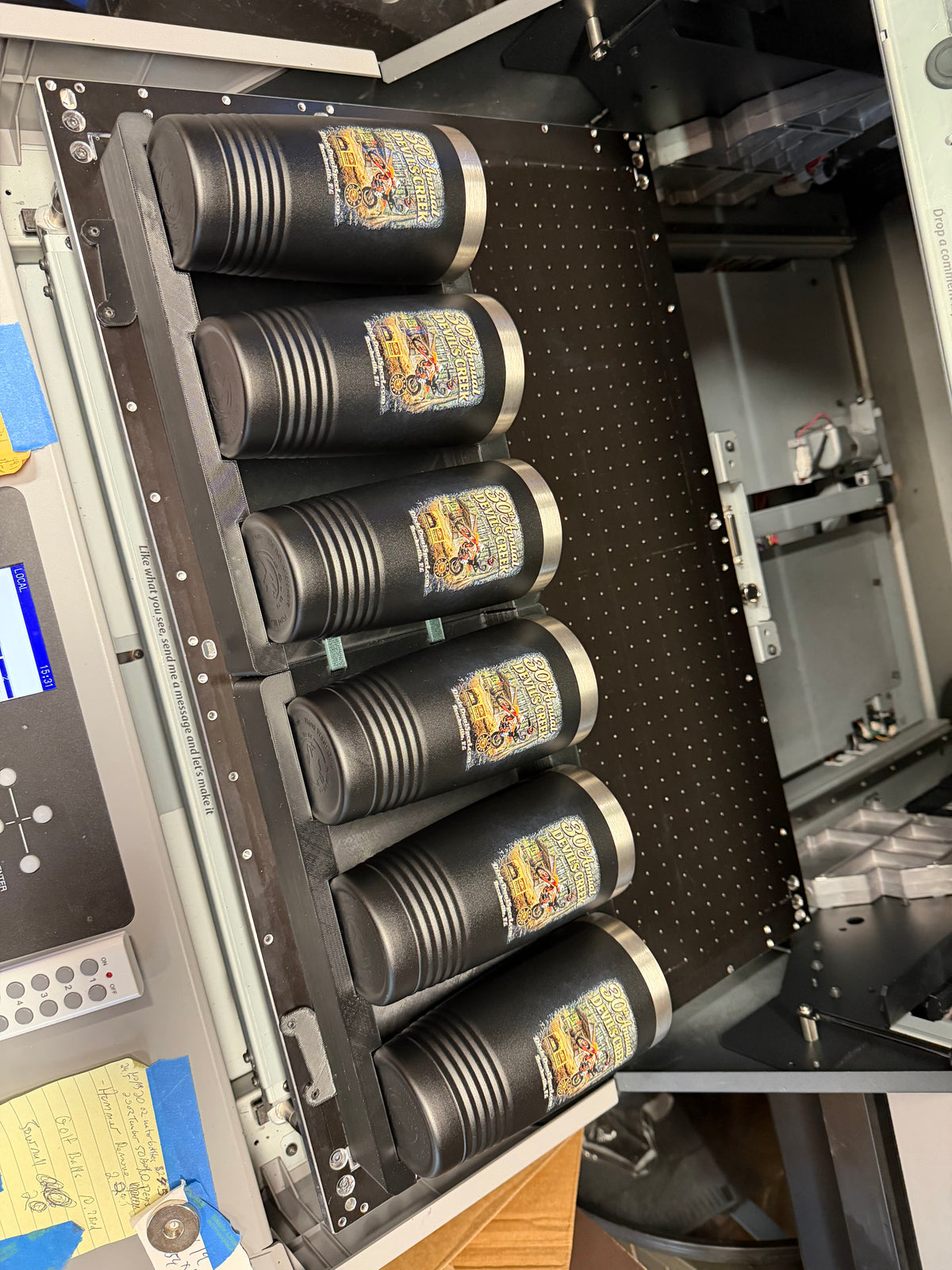

• 20oz tumblers using base plates only

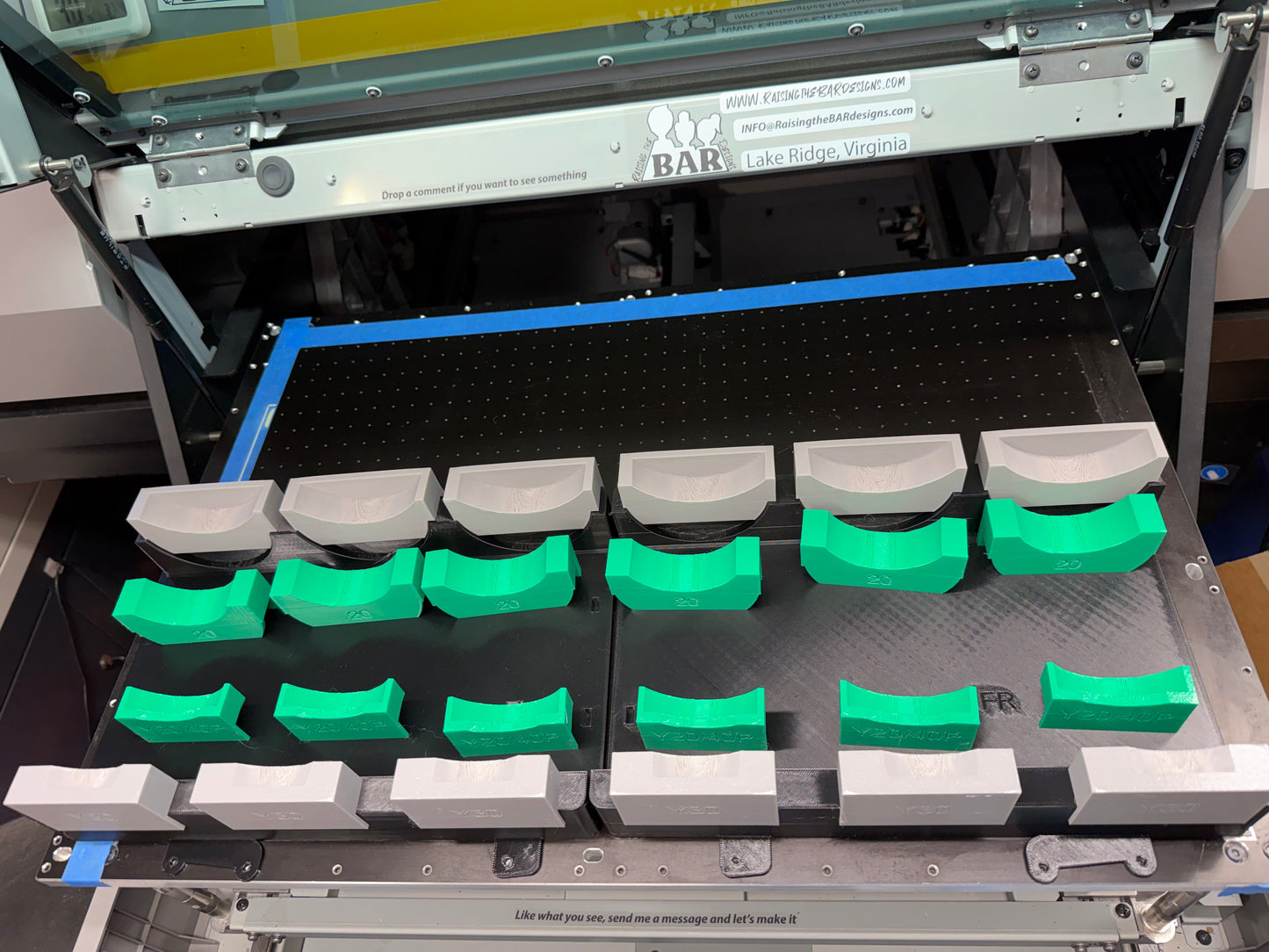

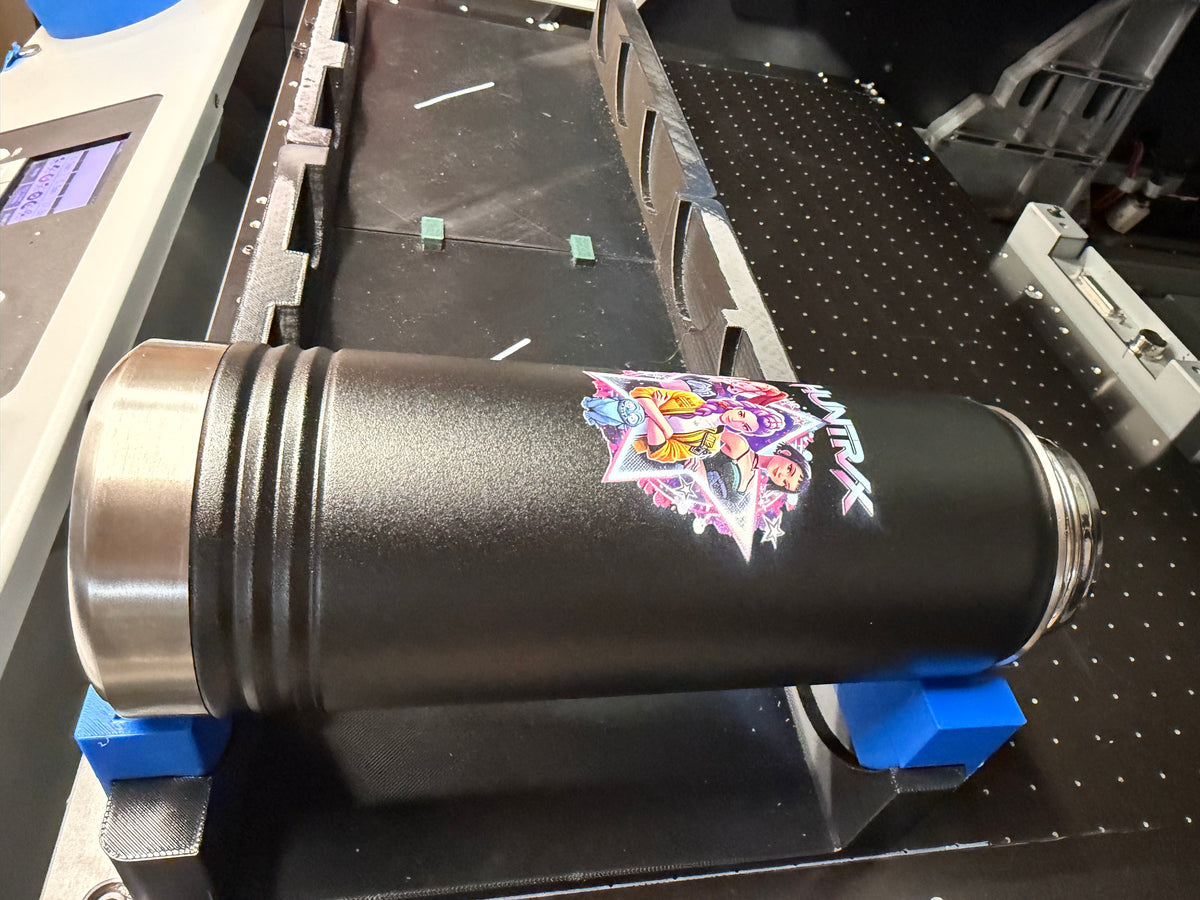

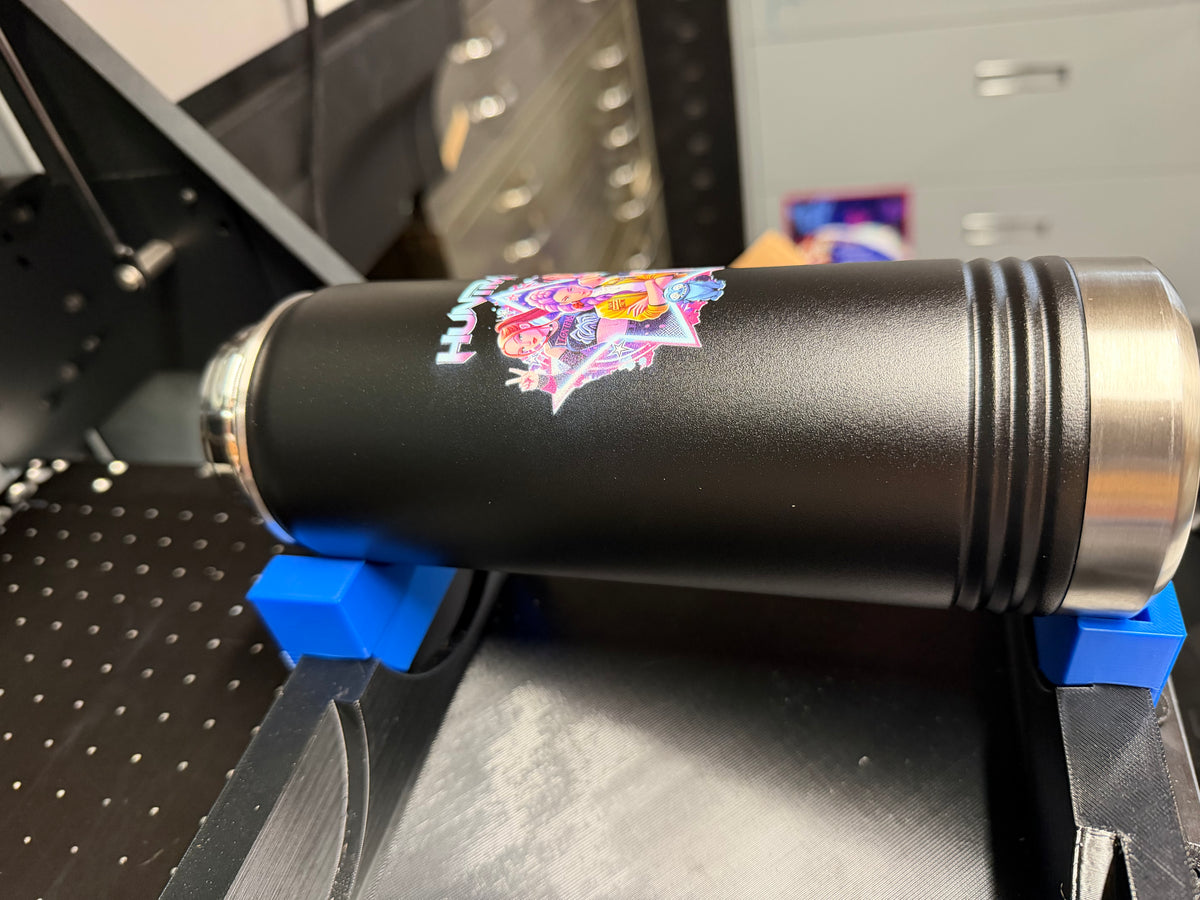

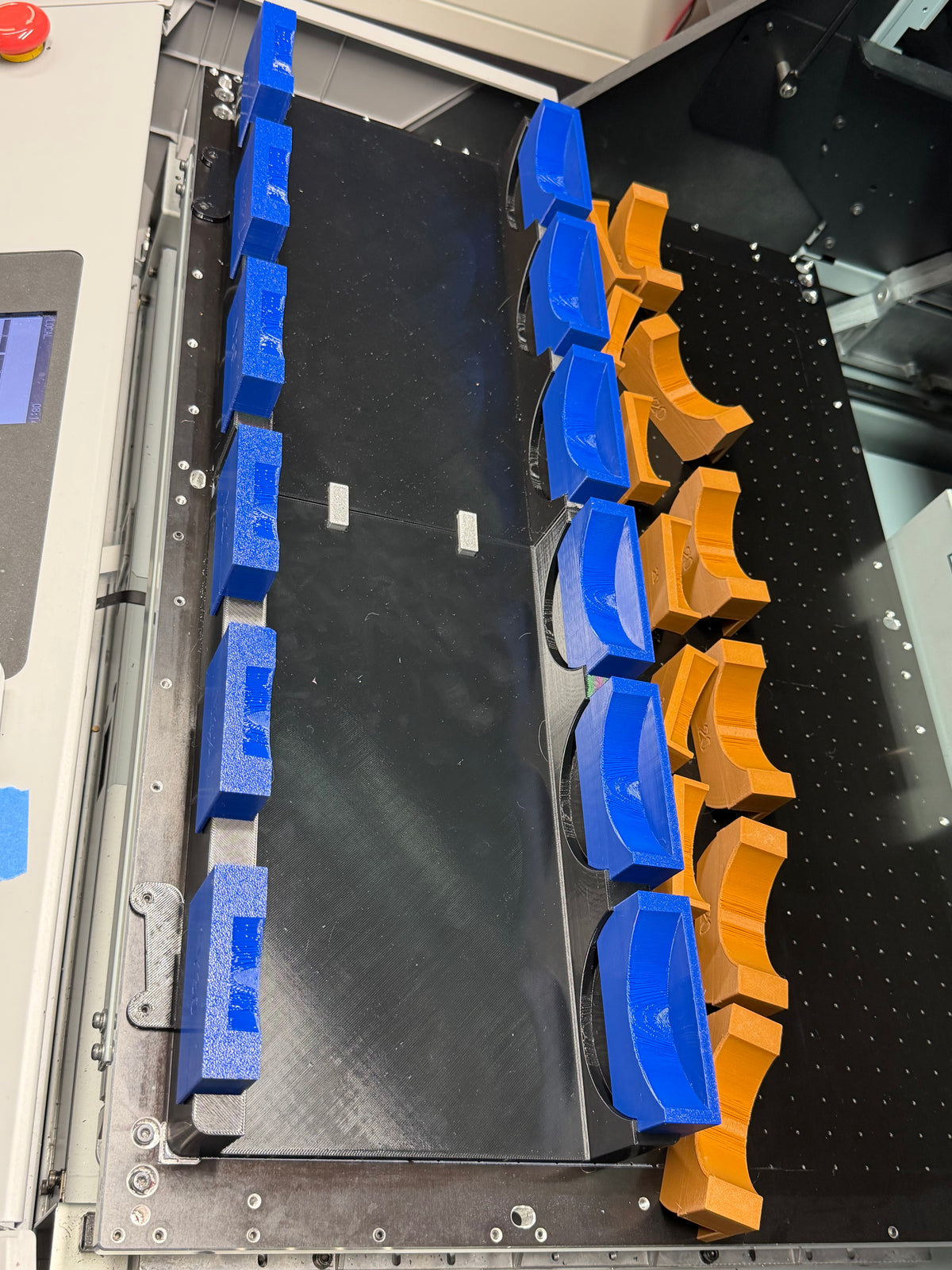

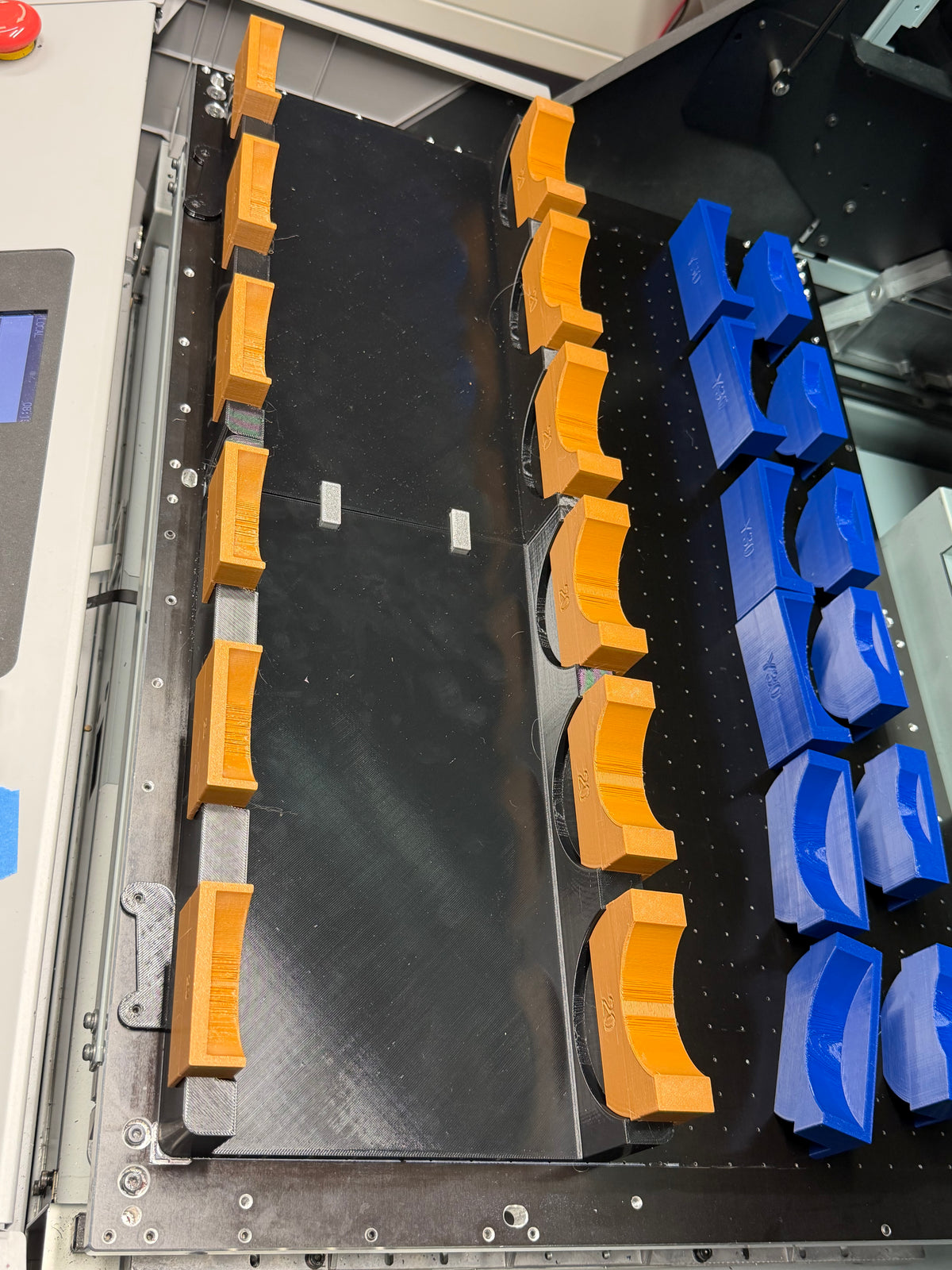

• Option for elevated adapters for 30oz tumblers and 20oz water bottles
• Extra adapters gives you more flexibility to try leveling other drinkware styles, like 30oz Stanley-style dupes
• Stable positioning for accurate UV printing

Included

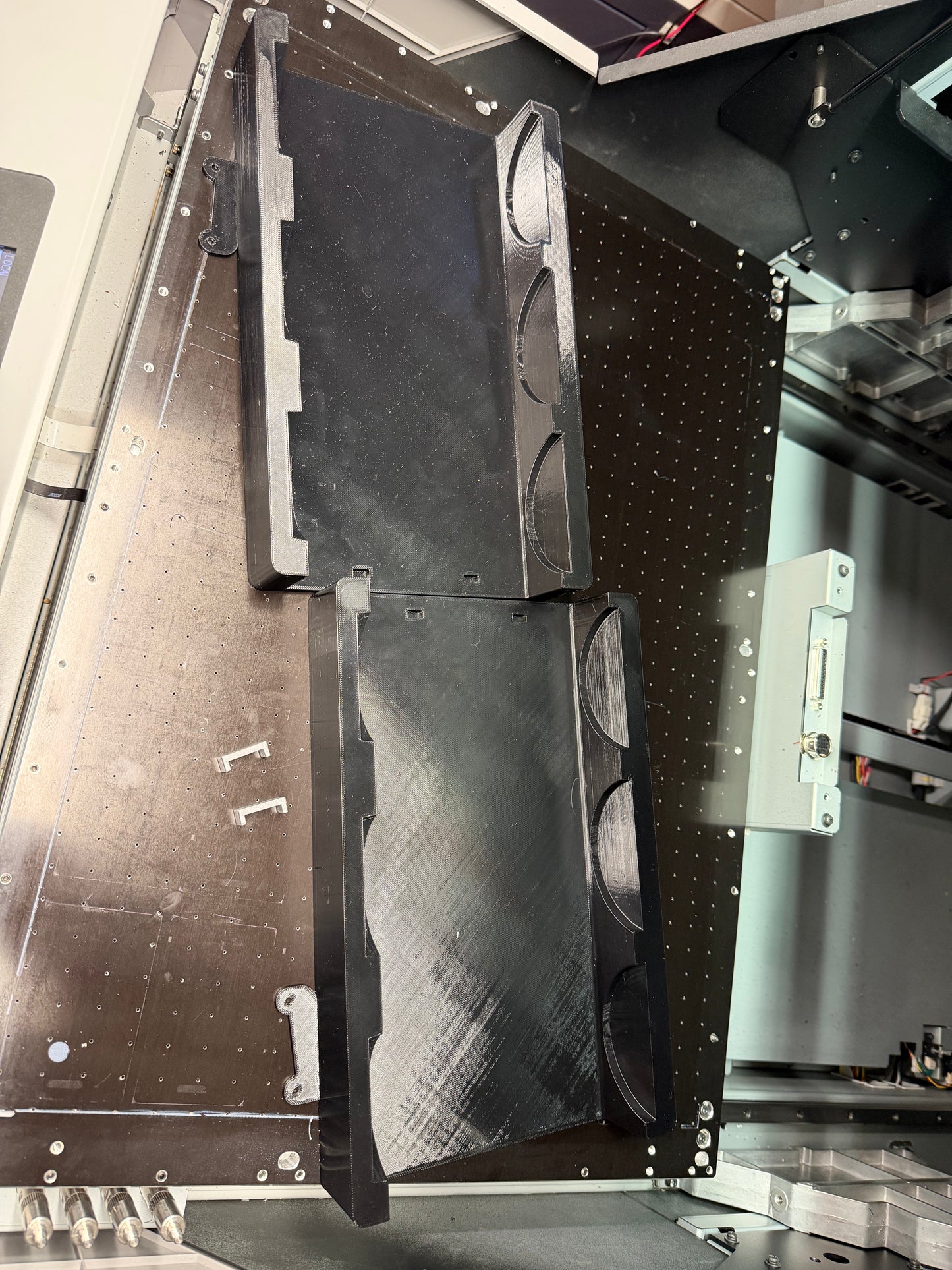

• • 20oz Tumbler Base plate system for Mimaki 3042/6042/7151
  • Adobe Illustrator alignment template (.AI) to help line up artwork for 20oz and 30oz tumblers

Options (6042 works on 7151)

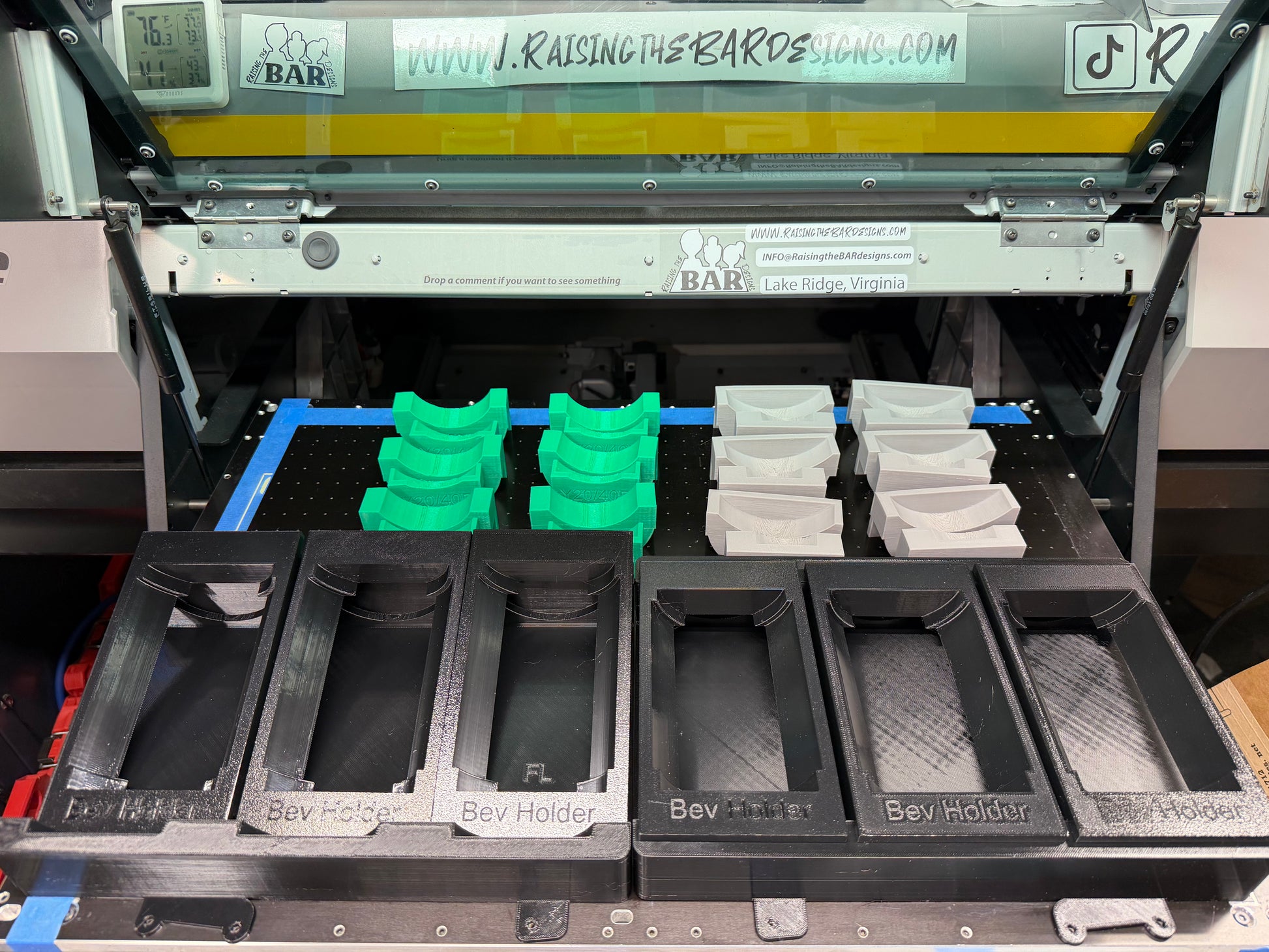

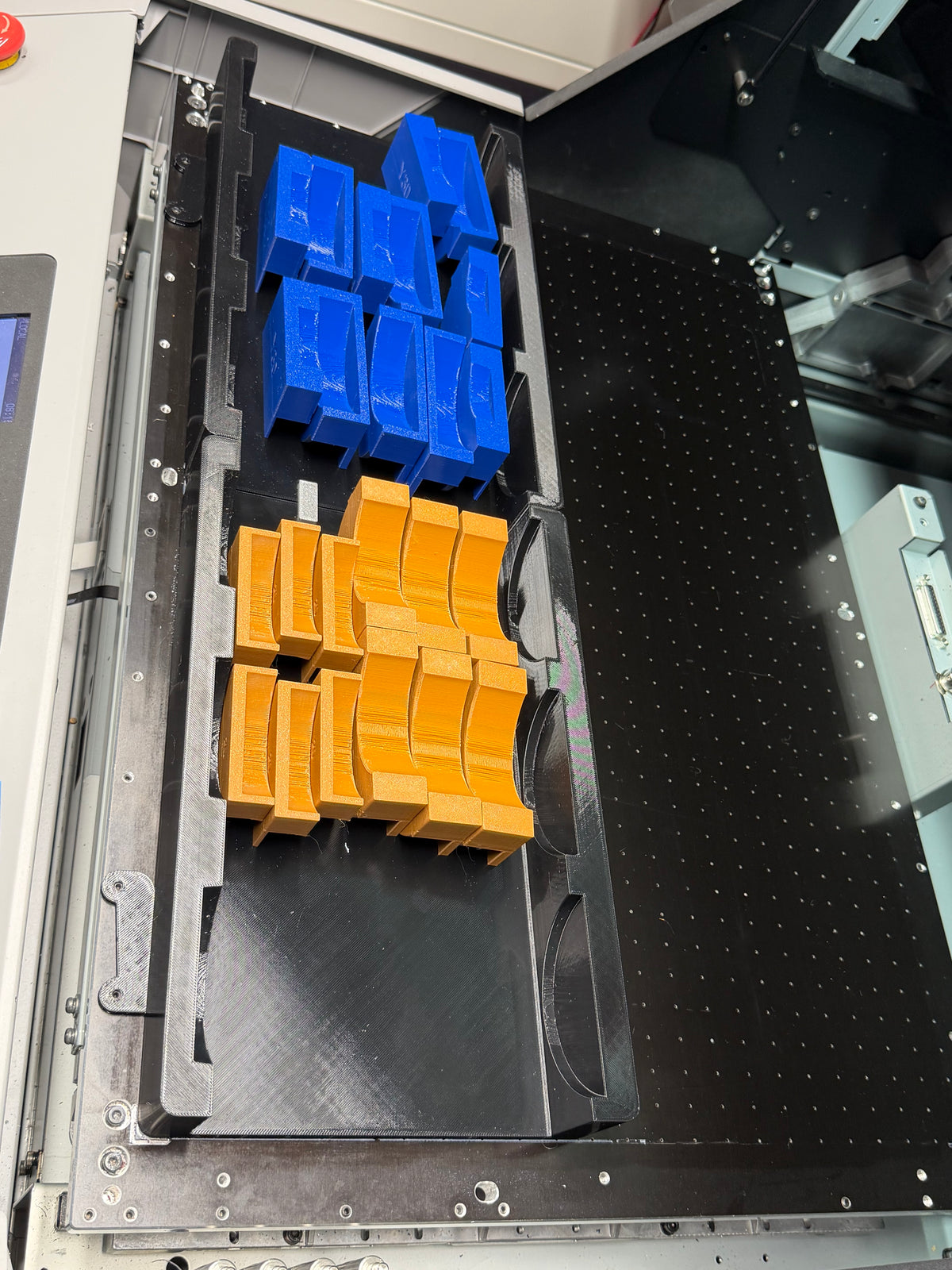

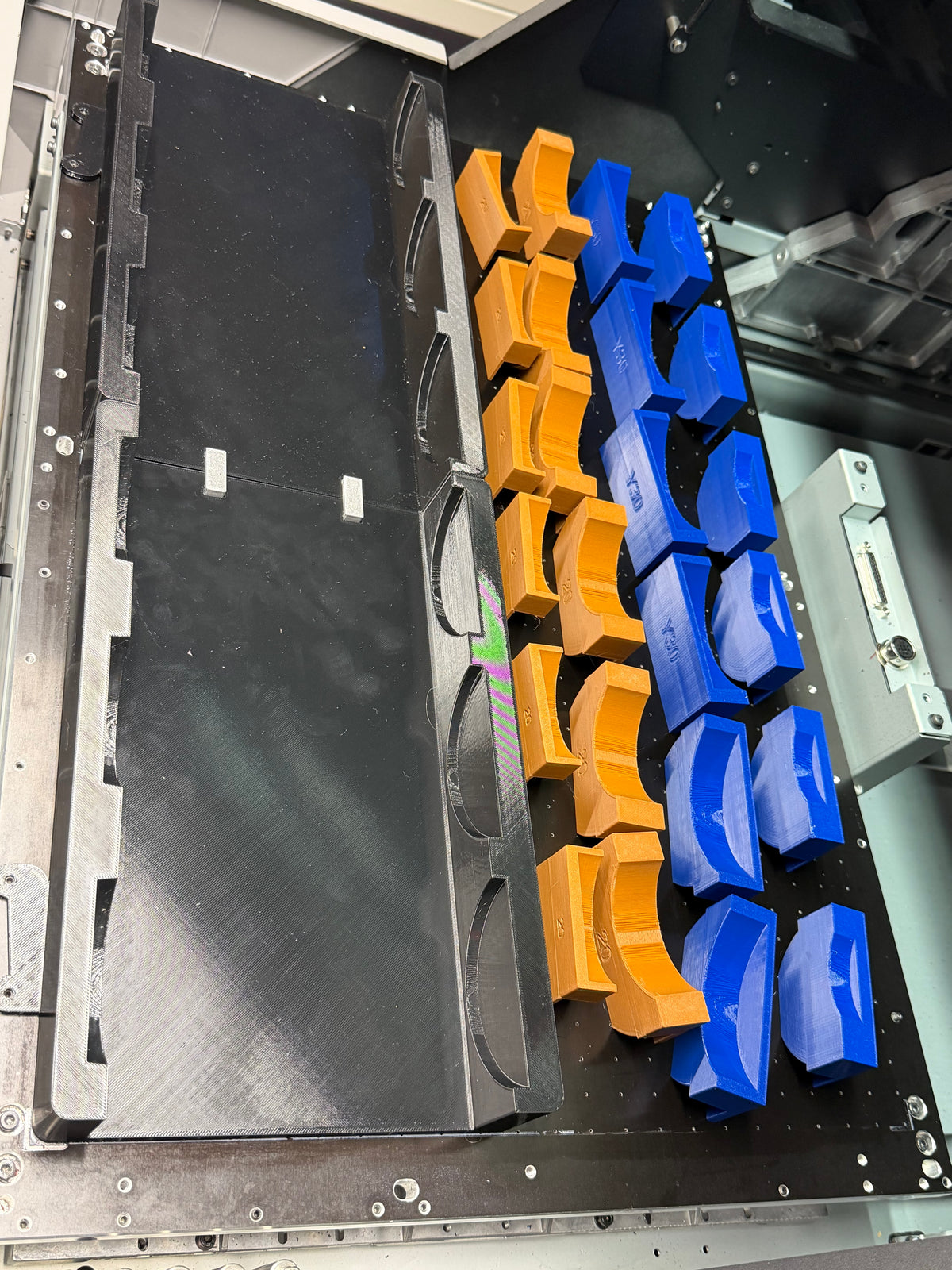

• 6042 Base + Elevated Adapters + 10oz Low Ball/JDS Beverage Holder Add-On: Full expanded setup for shops wanting the most flexibility. (32 pieces)

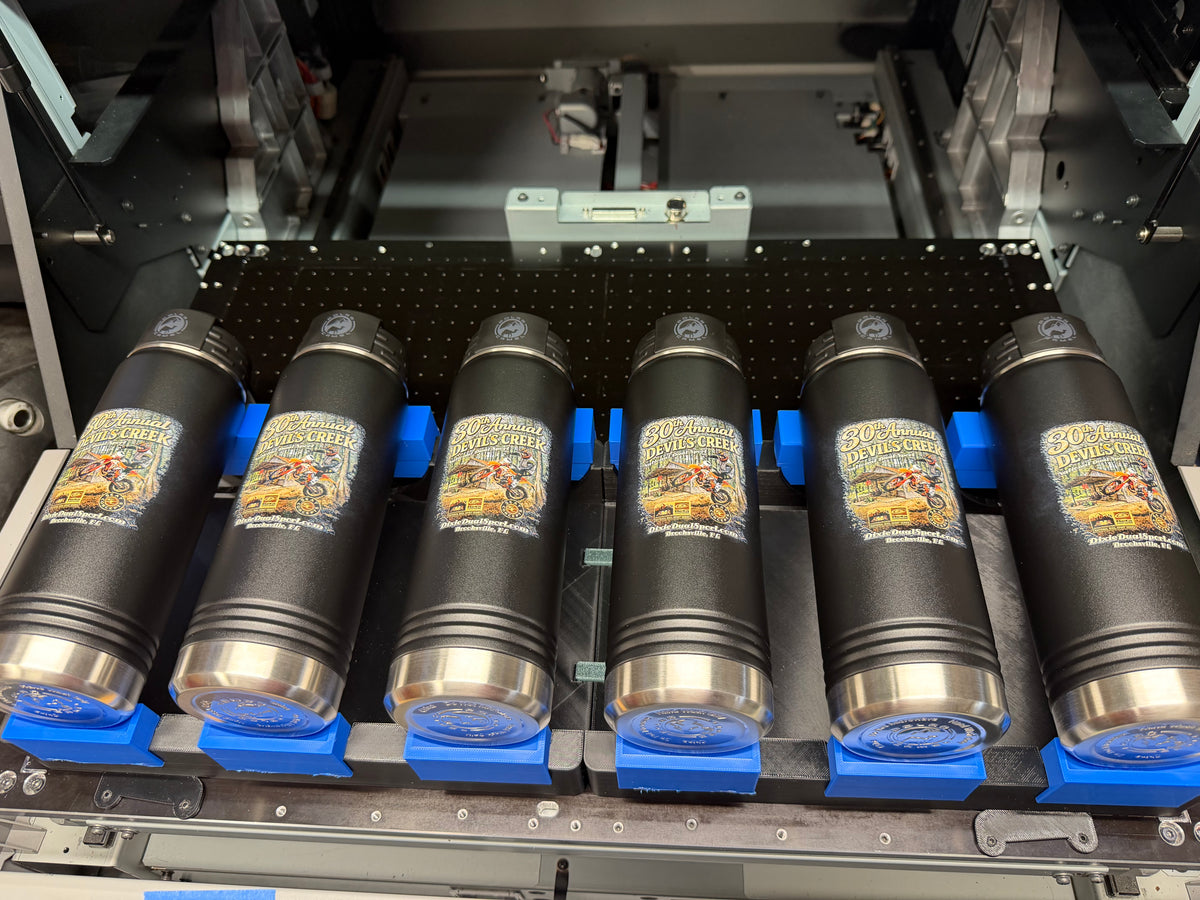

• 6042 Base Kit + Elevated Adapters: Designed for 20oz tumblers, 30oz tumblers, and 20oz Polar Camel-style water bottles. (26 pieces)
• 3042 Base Kit + Elevated Adapters + 10oz Low Ball/JDS Beverage Holder Add-On: : Designed for 20oz tumblers with 30oz tumbler and 20oz water bottle adapters.(16 pieces)
• 3042 Base Kit + Elevated Adapters: Designed for 20oz tumblers with 30oz tumbler and 20oz water bottle adapters.(13 pieces)

• 3042 10oz Low Ball/JDS Beverage Holder Add-On Only: Add-on option for customers who already have the 3042 jig system. (3 Adapters)

• 6042 10oz Low Ball/JDS Beverage Holder Add-On Only: Add-on option for customers who already have the 6042 jig system. (6 Adapters)

The Illustrator template provides a great starting point for artwork placement. Minor adjustments may still be needed depending on water bottles or other cup styles.

Print Placement Reference

Listing photos include recommended print placement zones to help you quickly align artwork when setting up prints.

Surface Prep Note

Every shop has its own “secret sauce” when it comes to ink adhesion. I share my secret sauce and how I prep drinkware, which passes UV Benchmark adhesion testing. Many shops use techniques like cleaning or flame treatment depending on their workflow—find what works best for you.

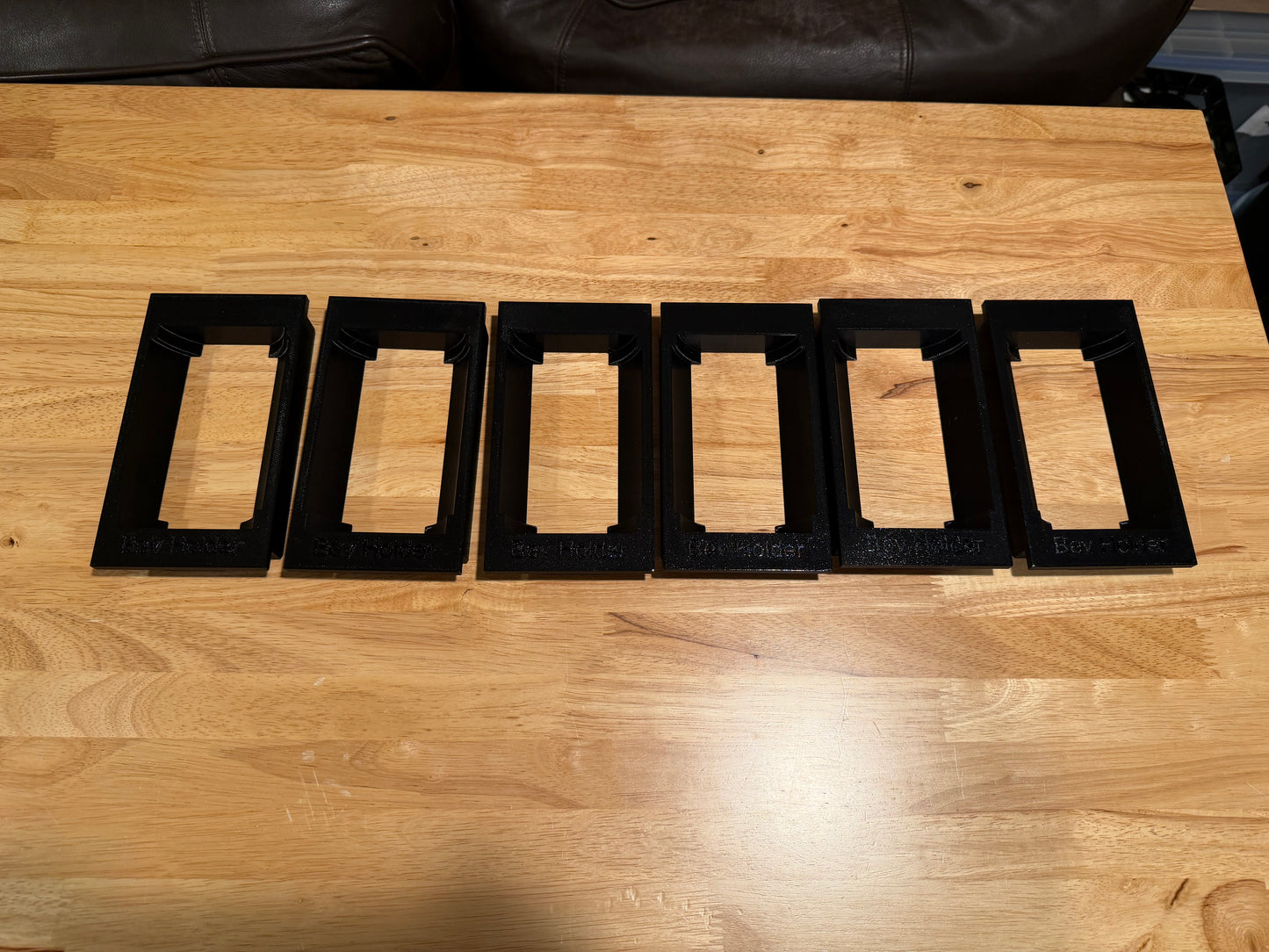

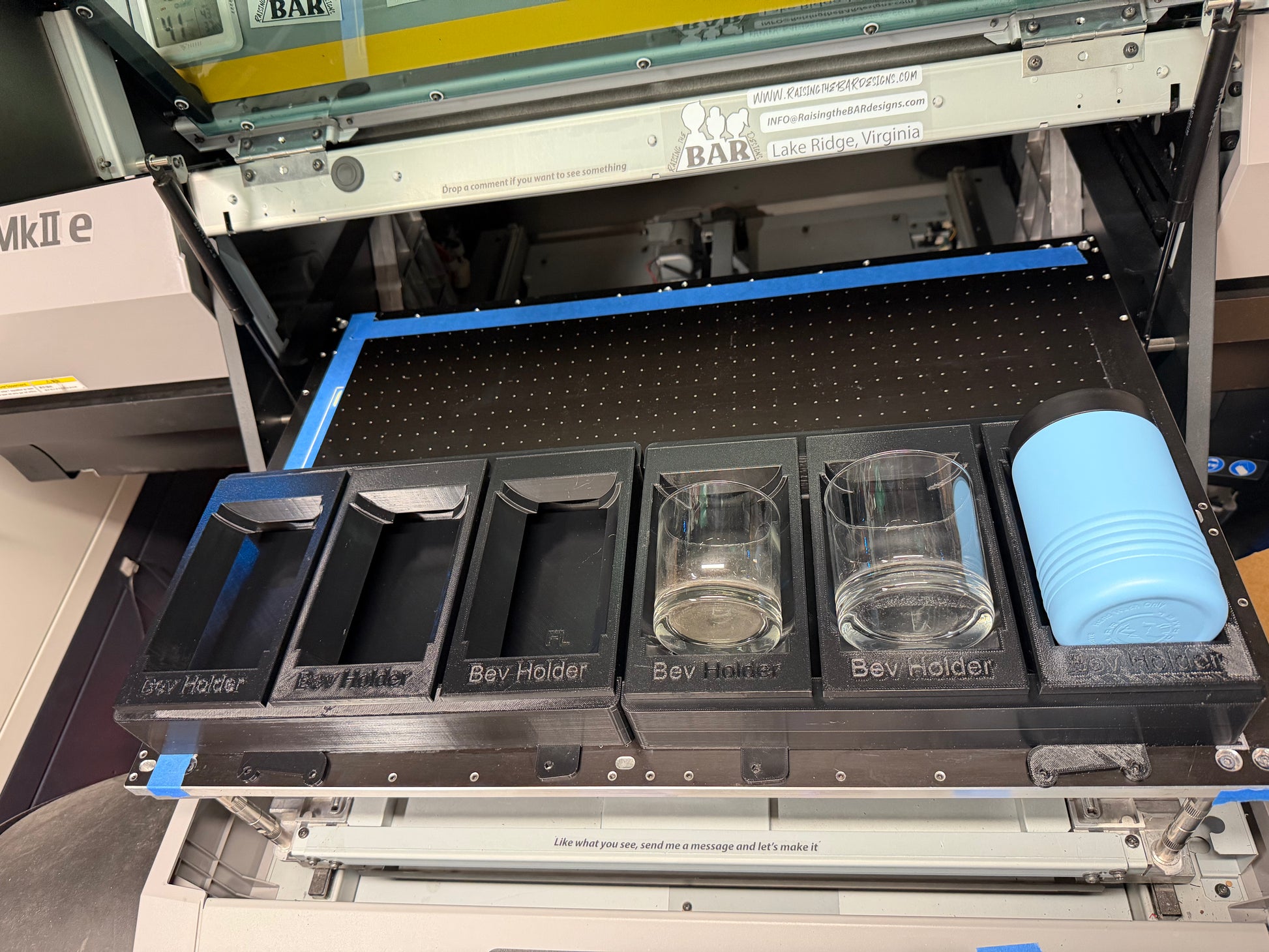

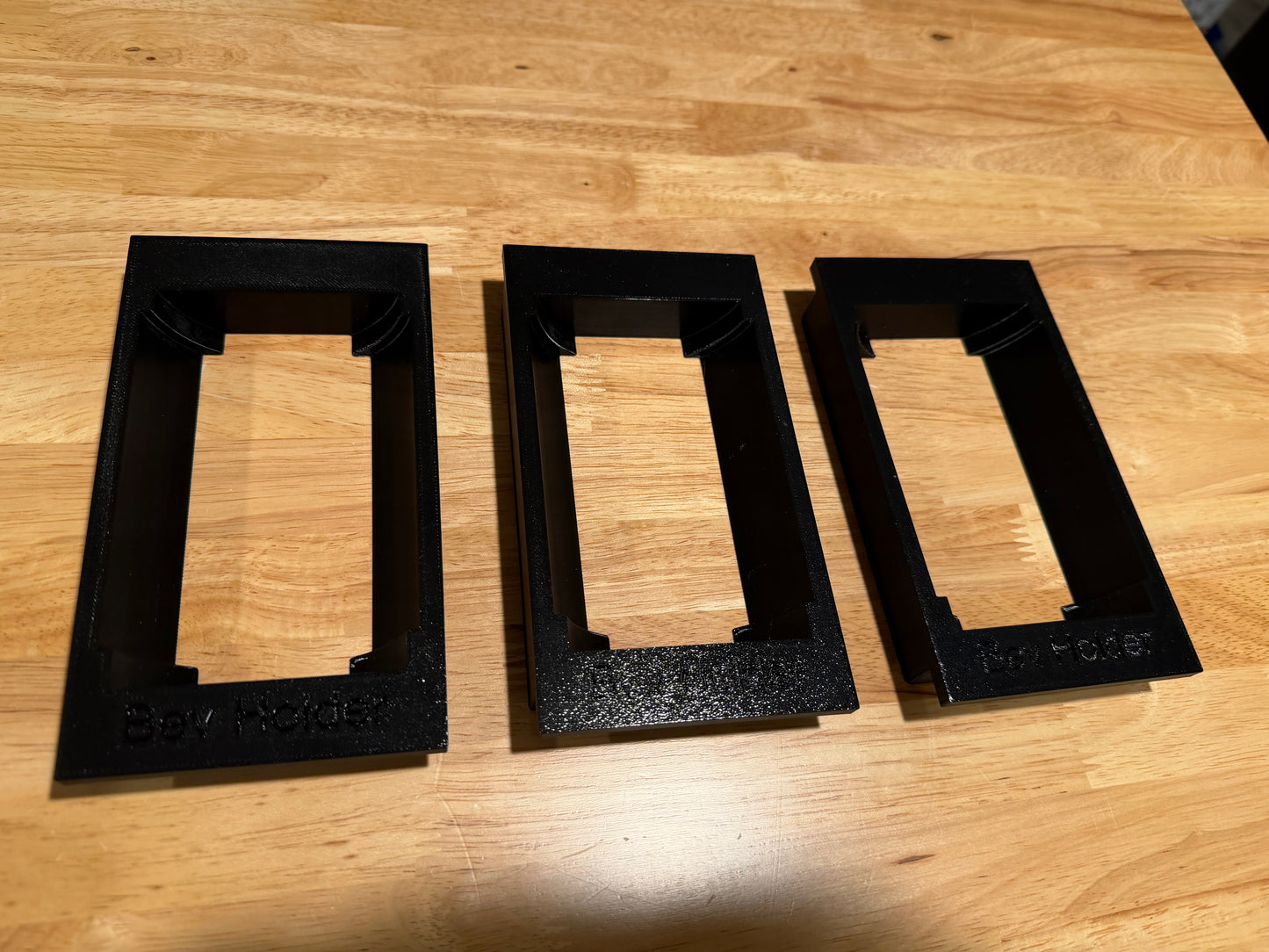

10oz low ball and JDS beverage holder support is now available as a 6042 add-on option.

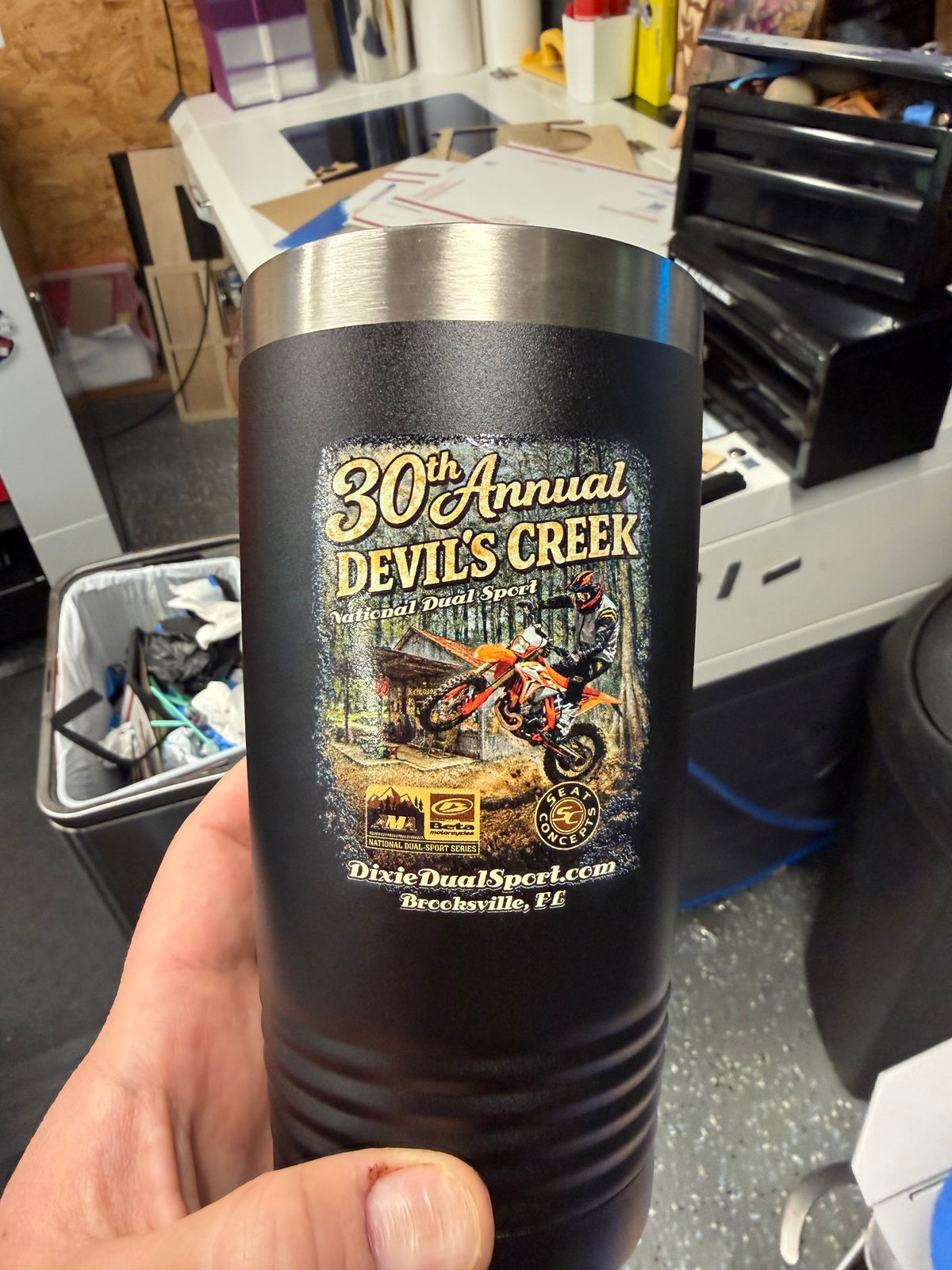

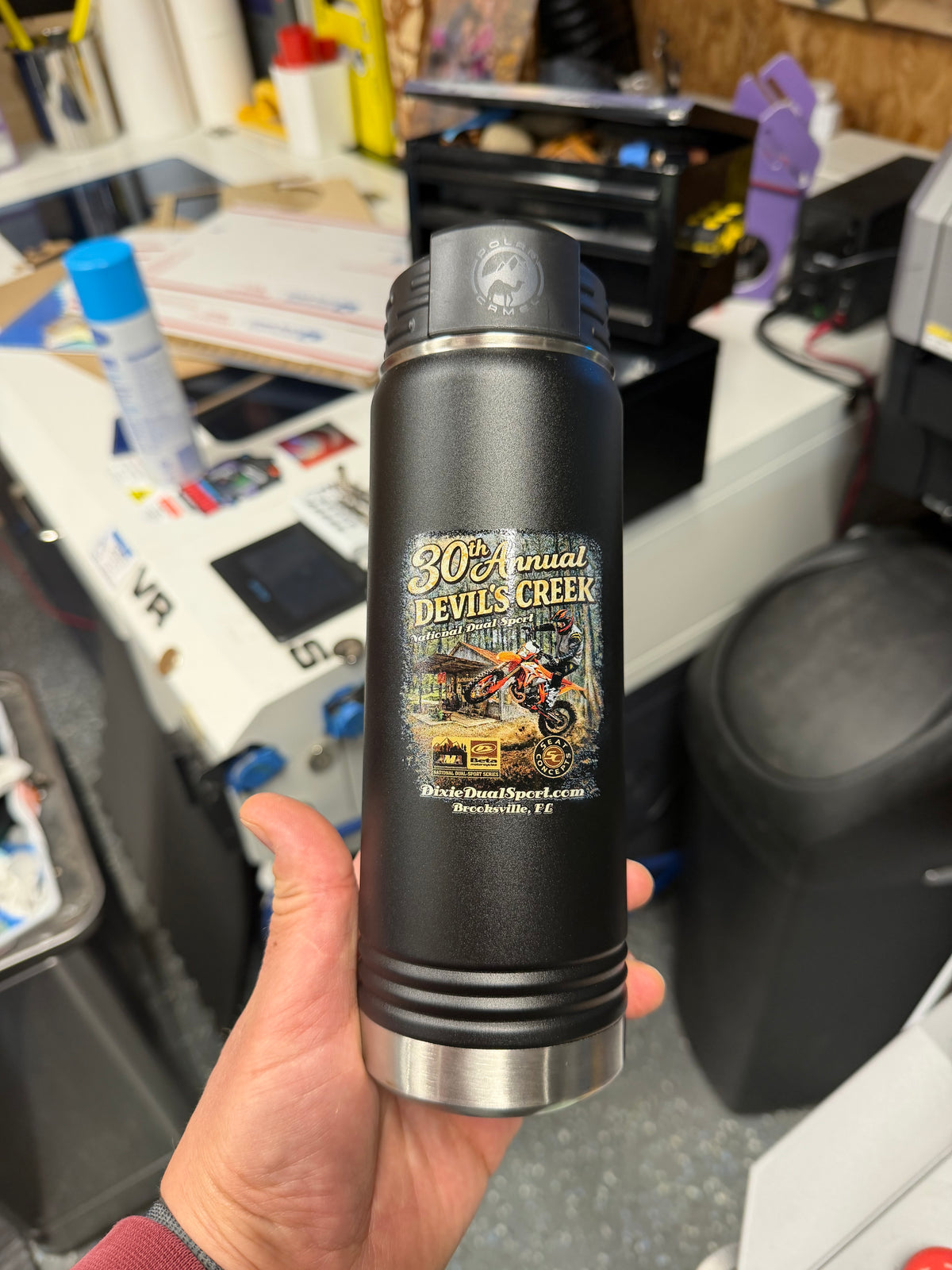

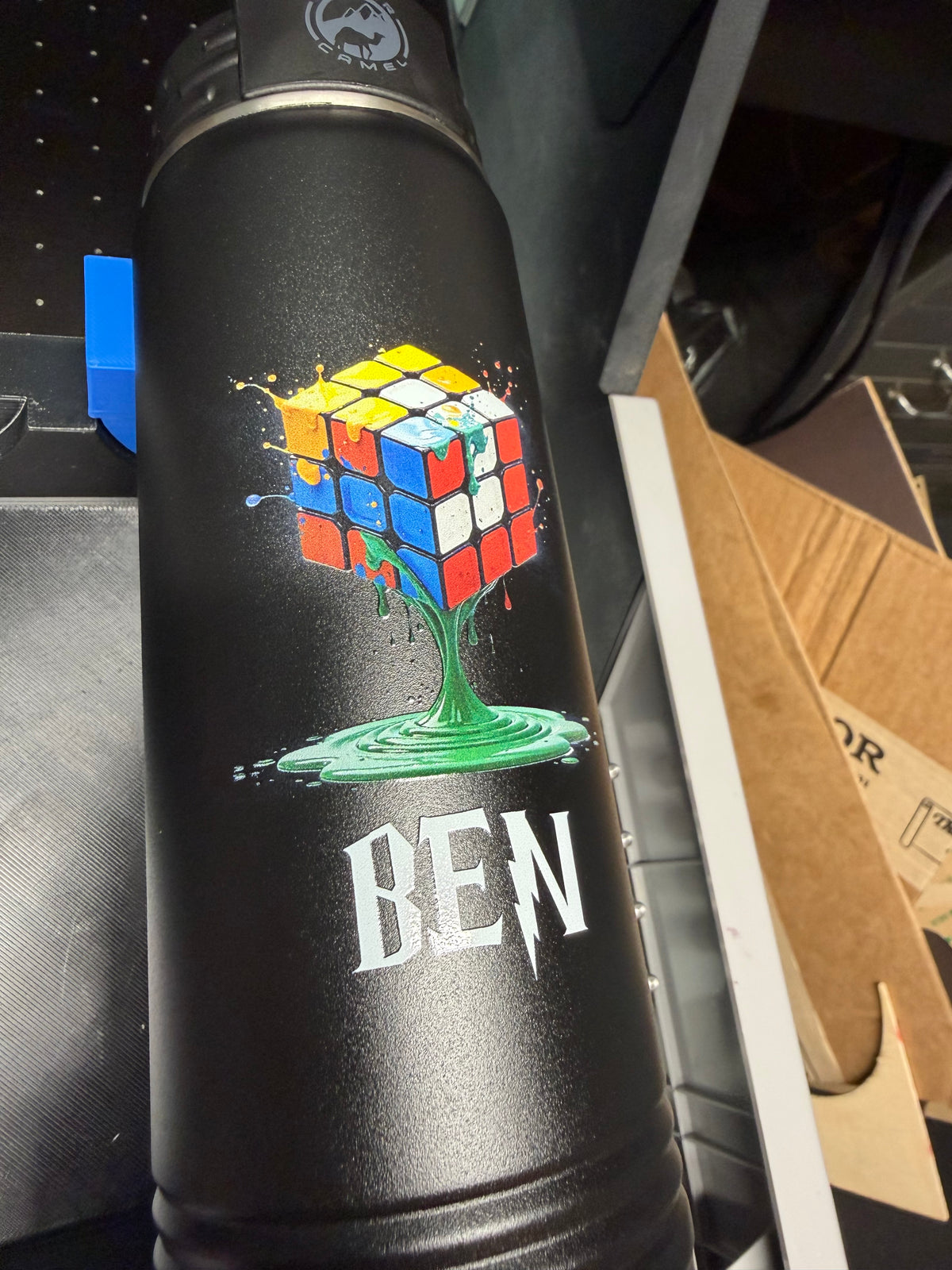

All designs shown were printed LD2 with 120 inks, images were 2.1".
